ZRPS/ZRPN Right Angle Gearbox – Precision and Durability with Versatile Flange Output
The ZRPS/ZRPN Right Angle Gearbox series combines precision engineering with robust construction to meet the needs of demanding applications in automation, robotics, and industrial machinery. With spiral bevel gears for high efficiency and a choice of square (ZRPS) or round (ZRPN) flange outputs, this gearbox offers unmatched adaptability and performance.
Key Features:
- High-Precision Spiral Bevel Gears
- Engineered for smooth and efficient torque transmission with minimal backlash.
- Ensures precision performance in high-demand motion control systems.
- Versatile Output Flanges

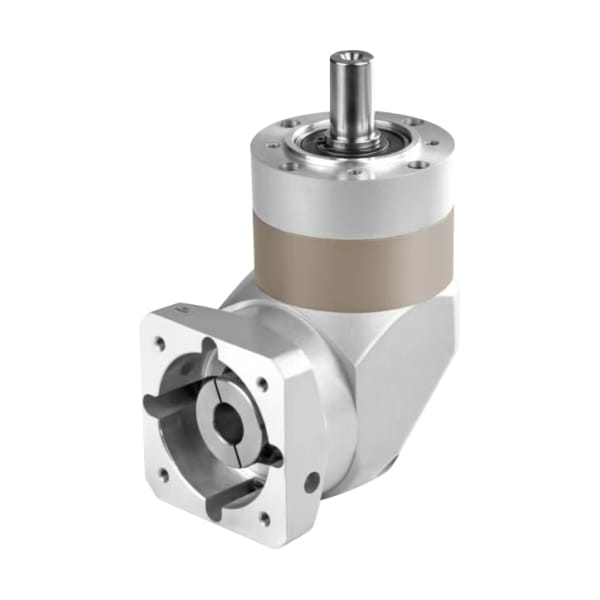

- ZRPS: Square flange output for easy integration into rigid, standard industrial setups.

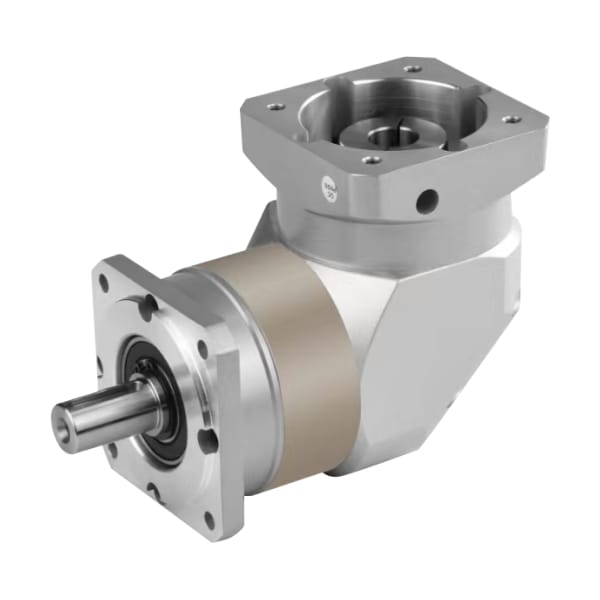

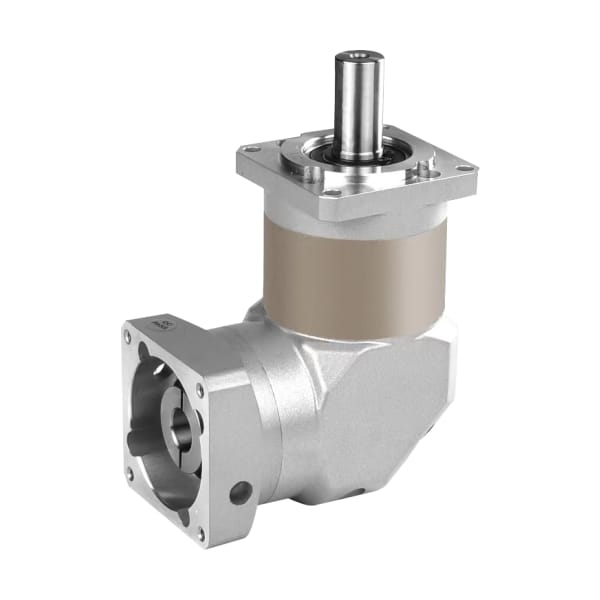

- ZRPN: Round flange output for applications requiring a compact and streamlined design.
- Durable and Robust Design
- Built with high-grade materials to withstand harsh environments and heavy-duty operations.
- Superior wear resistance and longevity ensure reliable operation over time.
- Compact Right Angle Configuration
- Space-saving design allows for installation in confined spaces without sacrificing performance.
- It is ideal for applications requiring angular transmission with high positional accuracy.
- Low Backlash and Noise Reduction
- Advanced gear design ensures minimal backlash for enhanced precision.
- It operates quietly, making it suitable for noise-sensitive environments.
- Optimized Efficiency
- High mechanical efficiency reduces energy losses and improves system performance.
- Thermal optimization prevents overheating during continuous operations.
- Flexible Mounting and Integration
- This product is compatible with a variety of mounting standards for seamless system integration.
- Multiple gear ratio options to cater to diverse application needs.
Specifications:
- Gear Type: Spiral bevel gear.
- Backlash: Ultra-low for precision motion.
- Torque Capacity: High torque handling for demanding industrial tasks.
- Flange Options: Square (ZRPS) or Round (ZRPN).
- Mounting Flexibility: Supports horizontal, vertical, and angular mounting positions.
Applications:
- Robotics and Automation
- Provides precise movement control in robotic joints and automated systems.
- Material Handling Equipment
- Powers conveyor systems, hoists, and other handling machinery with high reliability.
- Machine Tools
- Enhances accuracy and durability in lathes, milling machines, and CNC setups.
- Renewable Energy Systems
- Efficiently manages torque in solar panel tracking systems and wind turbine mechanisms.
- Packaging and Processing
- Ensures speed and precision in automated packaging and material processing equipment.
- Aerospace and Defense
- Delivers precision and robustness for specialized applications in avionics and defense systems.
Customization Options:
- Gear Ratios: Wide range to meet specific torque and speed requirements.
- Material Choices: High-strength steel or lightweight aluminum housing options.
- Coatings: Anti-corrosion coatings for marine or corrosive environments.
- Shaft and Flange Configurations: Tailored to fit unique design requirements.
Why Choose ZRPS/ZRPN Right Angle Gearboxes?
The ZRPS/ZRPN Right Angle Gearbox series is designed for precision, durability, and versatility. Whether you need a square or round flange output, this gearbox delivers exceptional performance and reliability across various applications. With customizable options and proven spiral bevel gear technology, it’s the perfect solution for enhancing the efficiency and precision of your mechanical systems.
Upgrade to the ZRPS/ZRPN series for advanced motion control and robust performance in even the most challenging environments.
