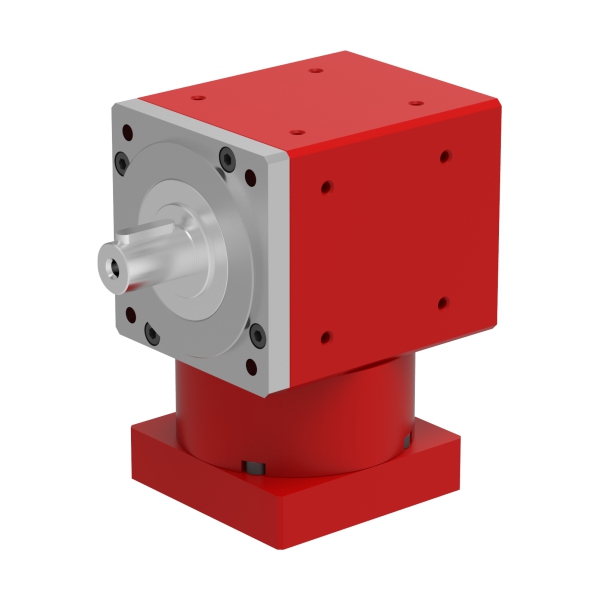

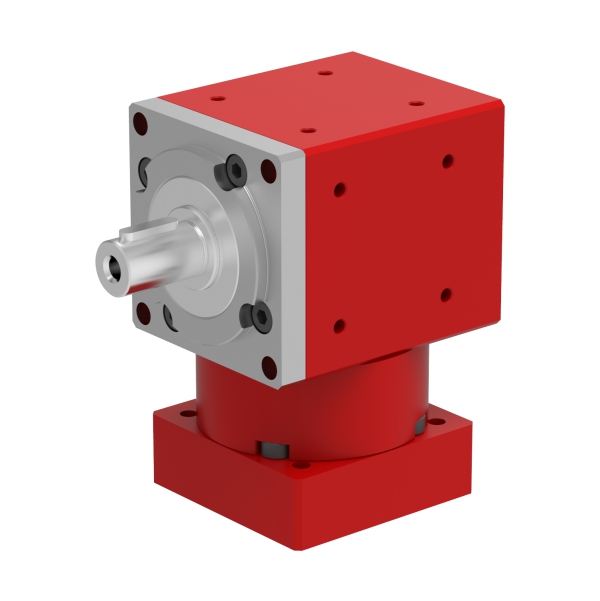

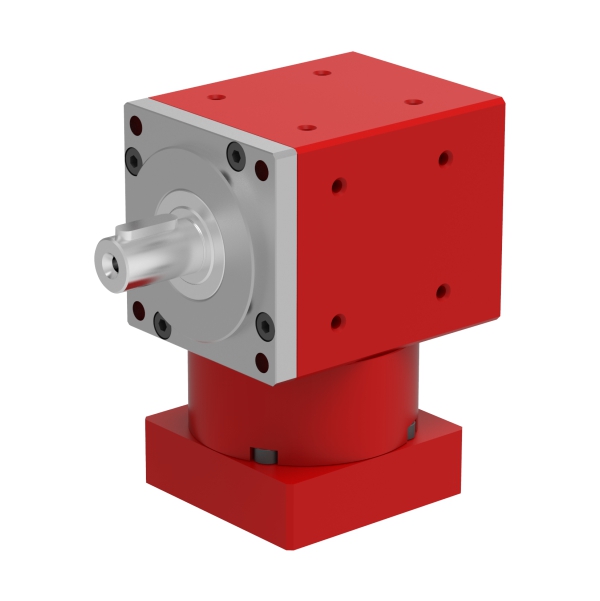

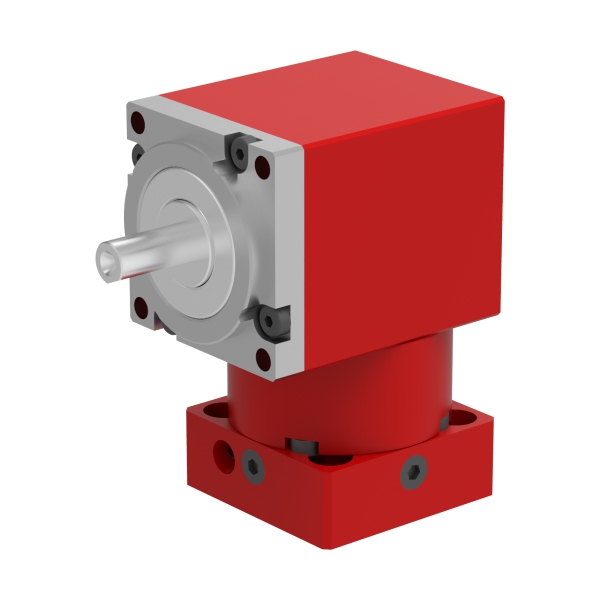

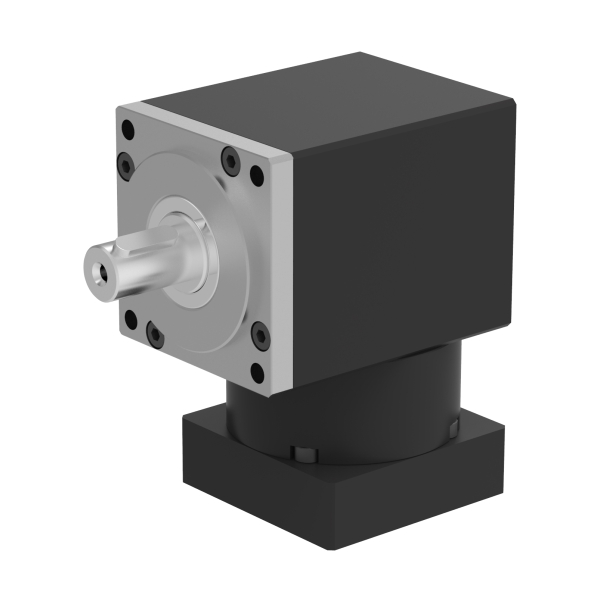

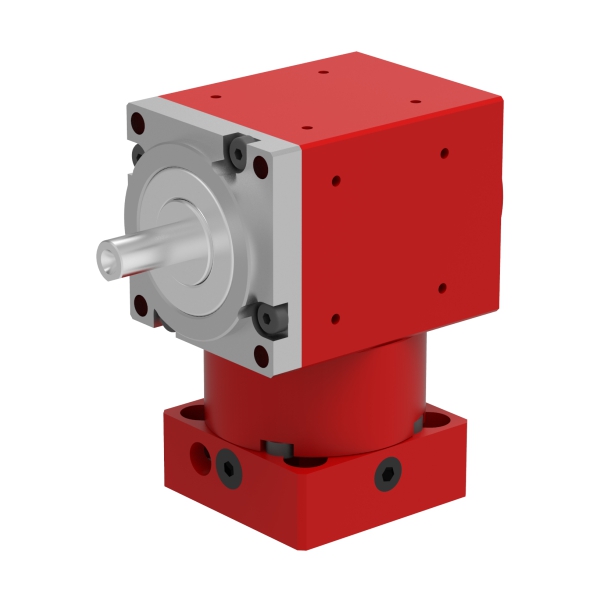

Precision Right Angle Gearbox

Precision Right Angle Gearbox – Compact & High-Performance

The Precision Right Angle Gearbox is a highly efficient and compact solution that delivers reliable torque transmission and precise motion control. Featuring a spiral bevel gear mechanism, this gearbox is ideal for applications requiring compact design, durability, and low backlash. It is tailored to meet the demand for automation and motion-control systems across various industries.

Key Features

1. Compact Design
   • Space-saving configuration is suitable for tight installation spaces.
   • Lightweight yet robust construction for easy integration into existing systems.
2. Spiral Bevel Gear Technology
   • High-efficiency power transmission with minimal energy loss.
   • The design ensures smooth and quiet operation, reducing noise and vibration during use.
3. Low Backlash
   • Enhanced precision for demanding motion control and positioning tasks.
   • Ideal for robotic systems, CNC machinery, and other precision-driven applications.
4. Durable Construction
   • High-quality materials, including hardened steel gears, for extended service life.
   • Corrosion-resistant finishes for use in harsh environments.
5. Versatile Mounting Options
   • Configurable for horizontal, vertical, or angled orientations to suit diverse operational layouts.
   • Flange- or shaft-mounting options are available for flexibility.
6. High Torque Capacity
   • Engineered to handle high loads without compromising efficiency or precision.
   • Optimal for heavy-duty applications in industrial settings.

Benefits

• Precision Engineering: Delivers accurate and repeatable motion control for intricate operations.
• Enhanced Efficiency: Reduces energy consumption and heat output, resulting in cost savings.
• Longevity: Built to withstand high loads and continuous operation, minimizing maintenance needs.
• Application Flexibility: Compatible with a wide range of machinery and automation systems.

Applications

• Robotics and Automation: Provides precise movement control for robotic arms and assembly lines.
• Material Handling: Suitable for conveyors, lifts, and sorting systems.
• CNC Machinery: Ensures accurate positioning for cutting, drilling, and milling operations.
• Aerospace and Defense: Compact and reliable design for space-constrained and mission-critical applications.
• Medical Equipment: High precision and low noise for diagnostic and surgical systems.

Technical Specifications

• Gear Type: Spiral Bevel
• Backlash: Low (customizable based on application)
• Torque Range: Available in multiple configurations to match diverse requirements
• Material: Hardened steel gears, lightweight aluminum housing (optional stainless steel for specific use cases)
• Mounting: Flange or shaft-mount configurations available

Why Choose Our Precision Right Angle Gearbox?

Our Precision Right Angle Gearbox combines advanced spiral bevel gear technology with a compact and robust design, ensuring top-tier performance and reliability. Backed by years of expertise and dedicated support, this gearbox is ideal for applications that demand precision, efficiency, and long-term durability.

Let our team help you select or customize the perfect gearbox solution.
